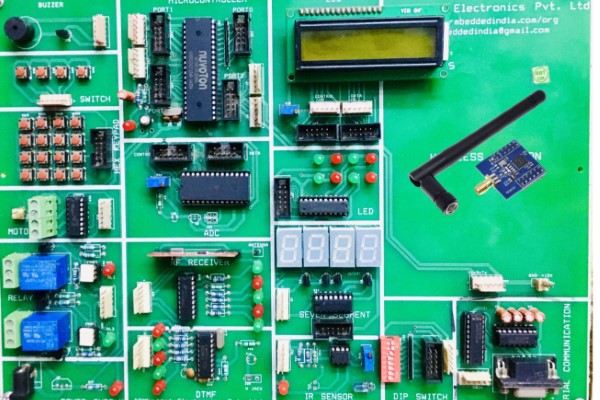

TECHNICAL SPECIFICATION :

• 802.11 b/g/n protocol.
• 8- bit single channel DAC
• Wi-Fi direct (P2P), soft-AP.
• Two 6V relays with isolated O/Ps.
• Integrated TCP/IP protocol stack.
• All interrupts available on header.
• Integrated TR switch, balun , LNA, power amplifier and matching network.
• 16X2 LCD display
• 8 I/Ps from DIP switches.
• Integrated PLL, regulators and power management units.
• 8 O/Ps available on LED's
• +19.5dBm output power in 802.11b mode.
• Four multiplexed 7-segment displays
• Integrated temperature sensor.
• 4 push buttons for interrupt study
• Supports antenna diversity.
• Windows based driver software for programming.
• Power down leakage current of < 10uA.
• 4x4 Matrix Hex Keypad
• Integrated low power 32 bit CPU could be used as application processor.
• Stepper and D.C Motor Interface
• Buzzer Section
• SDIO 2.0, SPI, UART.
• IR Transmitter/ Receiver
• STBC, 1x1 MIMO, 2x1 MIMO.
• LDR (Light Dependent Resistor).
• A-MPDU & A-MSDU aggregation & 0.4us guard interval.
• LM- 35 Temperature Sensor
• Wake up and transmit packets in < 2ms.
• DTMF
• Standby power consumption of < 1.0mW(DTIM3).
• RF Receiver
• Nuvoton W78E052D C with ISP features
• In- circuit Programming and serial communication through PC.
• 8-bit-8 channel ADC with I/Ps from multi-turns potentiometers.

FUNCTIONS :

• Understanding The Wi-Fi System
• Communication Using Wi-Fi
• How Wi-Fi works
• Reading An Input on LCD
• Controlling The Appliances Using Wi-Fi communication
